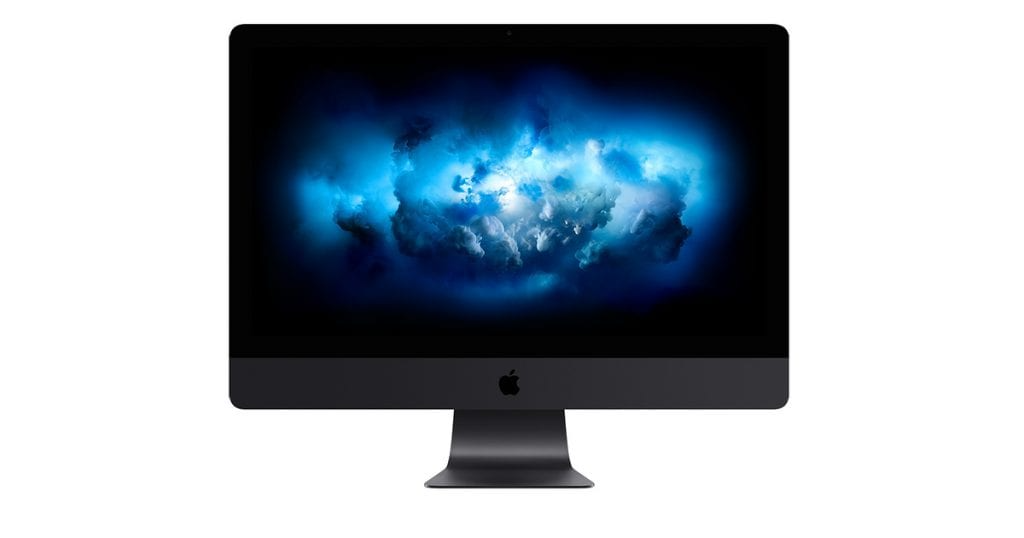

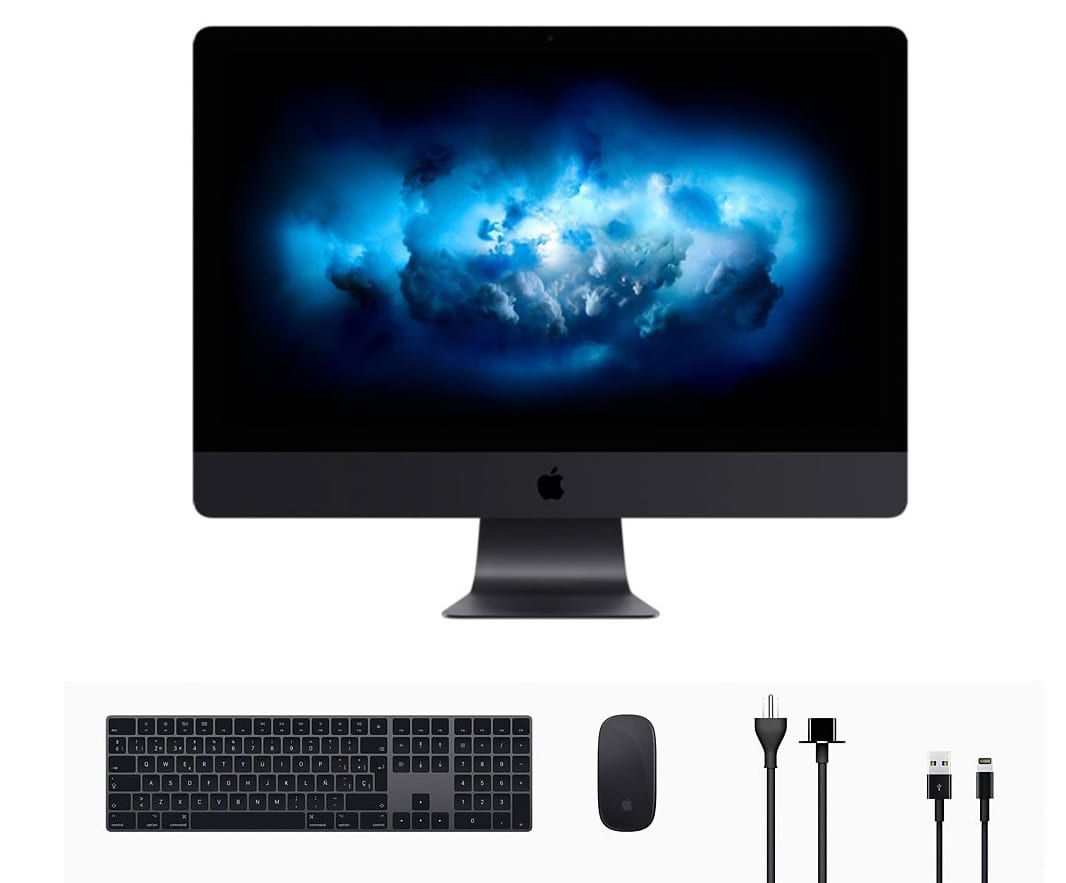

Apple iMac Pro 8 core 3.2 GHz 27″ 2017 Specs
iMac Pro – MQ2Y2LL/A – iMacPro1,1 – A1862
About this iMac
The iMac Pro is exactly what it sounds like. Based on the iMac shape, the iMac Pro is the answer for professionals who need more processing power but enjoy working off the all-in-one device. This iMac Pro features a 5K Retina display and is run by a powerful Intel Xeon W-2140B processor with eight cores. The base model features 32 GB of RAM and a 1 TB SSD. The graphics behind this model are powered by a Radeon Pro Vega 56 graphics processor with 8 GB of dedicated HBM2 video memory.
This iMac Pro does not have color options like other Apple products and only comes in Space Gray. The all-in-one design features four USB-C 3.0 ports as well as connectivity via Ethernet, Bluetooth, and Wi-Fi. The only main limitation of this Pro model is how difficult it is to upgrade. It is likely that most users will need to spec their systems out at purchase with future requirements in mind.
3.2 GHz Intel Xeon W-2140B
32 GB
1 TB SSD
Plugged-in
Weight and Size
This iMac has dimensions of 51.6 cm, 65.0 cm, and 20.3 cm and a weight of 21.5 lbs. (9.7 kg).
Screen Size and Resolution
The iMac Pro features a 27-inch screen 5120×2880 LED-backlit 16:9 widescreen IPS DCI-P3 “Retina 5K” display. The display is able to achieve a brightness of 500 nits. This iMac is also able to run Windows 10 (64-Bit).
Processor & Graphics Processing Unit (GPU)
The iMac comes pre-installed with the Mac OS X 10.13.2 (17C2111) operating system. It is powered by a 3.2 GHz Intel Xeon W-2140B processor with eight independent processors “cores” on a single chip. Its graphics processor is a Radeon Pro Vega 56 graphics processor with 8 GB of dedicated HBM2 video memory.
Memory & Architecture
The device is built with 32 GB of 2666 MHz DDR4 ECC memory but can be upgraded to 512 GB RAM. It’s designed is centered on a 64-Bit architecture.
Upgradability
The iMac Pro comes with 32 GB of RAM it can be upgraded up to 512 GB of RAM. This is upgradable to 2 TB or 4 TB SSD storage options. The Operating System of the iMac can also be upgraded from its pre-installed Mac OS X 10.13.2 (17C2111) up to the current macOS Ventura (macOS 13) — with the exception of the minor Live Captions in FaceTime, Emoji Dictation, and Reference Mode with Sidecar features.
Inclusive Features
The iMac includes the following features and ports:
- 802.11ac Wi-Fi
- Gigabit Ethernet
- Stereo Speakers
- Four USB C 3.0 Ports
- FaceTime 1080p HD webcam
- Bluetooth 4.2.
|
Introduced: December 14, 2017 |
Discontinued: August 4, 2020 |
||
|
Screen Size and Resolution |
Memory |
||
|
Screen Size |
27 inches 16:9 Widescreen |
Level 1 Cache |
32k/32k x8 |
|
Resolution |
5120×2880 |
Level 2/Level 3 Cache |
8 MB, 11 MB |
|
Processor |
RAM Type |
DDR4 ECC SDRAM |
|
|
Processors |
1 (8 Cores) |
Min. RAM Speed |
2666 MHz |
|
Architecture |
64-Bit |
Standard RAM |
32 GB |
|
Speed |
3.2 GHz (Turbo Boost 4.2 GHz) |
Maximum RAM |
512 GB |
|
Type |
8-Core Xeon W-2140B |
RAM Slots |
4 |
|
Processor Upgrade |
LGA 2066 |
Motherboard RAM |
None |
|
FPU |
Integrated |
Graphics |
|
|
System Bus Speed |
QPI |
Video Card |
Radeon Pro Vega 56 |
|
Cache Bus Speed |
3.2 GHz (Built-in) |
VRAM Type |
Dedicated (HBM2) |
|
ROM/Firmware |
EFI |
Standard VRAM |
8 GB |
|
EFI Architecture |
64-Bit |
Maximum VRAM |
16 GB |
|
Storage |
Inclusive Features and Ports |
||
|
Standard Storage |
1 TB SSD |
Standard Optical Drive |
None |
|
Storage Speed |
N/A |
Standard Ethernet |
Nbase-T |
|
Storage Dimensions |
Proprietary |
Standard Modem |
None |
|
Storage Interface |
Proprietary |
Standard AirPort |
802.11ac |
|
Battery |
Standard Bluetooth |
4.2 |
|
|
Type |
N/A |
USB Port 3.0 |
4 |
|
Battery Life |
N/A |
FireWire Ports |
None |
|
Description |
Keyboard |
Magic Keyboard |
|
|
Case Type |
All-in-One |
Inclusive Input |
Magic Mouse 2 |
|
Form Factor |
27″ iMac Pro |
S-Video Output |
None |
|
Apple Order No |
MQ2Y2LL/A |
Microphone |
4 (Built-in) |
|
Apple Subfamily |
iMac Pro, Late 2017 |
Headphone |
1 |
|
Apple Model Number |
A1862 (EMC 3144) |
Sound Out |
1 |
|
Model ID |
iMacPro1,1
|
Power |
1 |
